Automatic frozen food weighing filling packaging machine

Úvod :

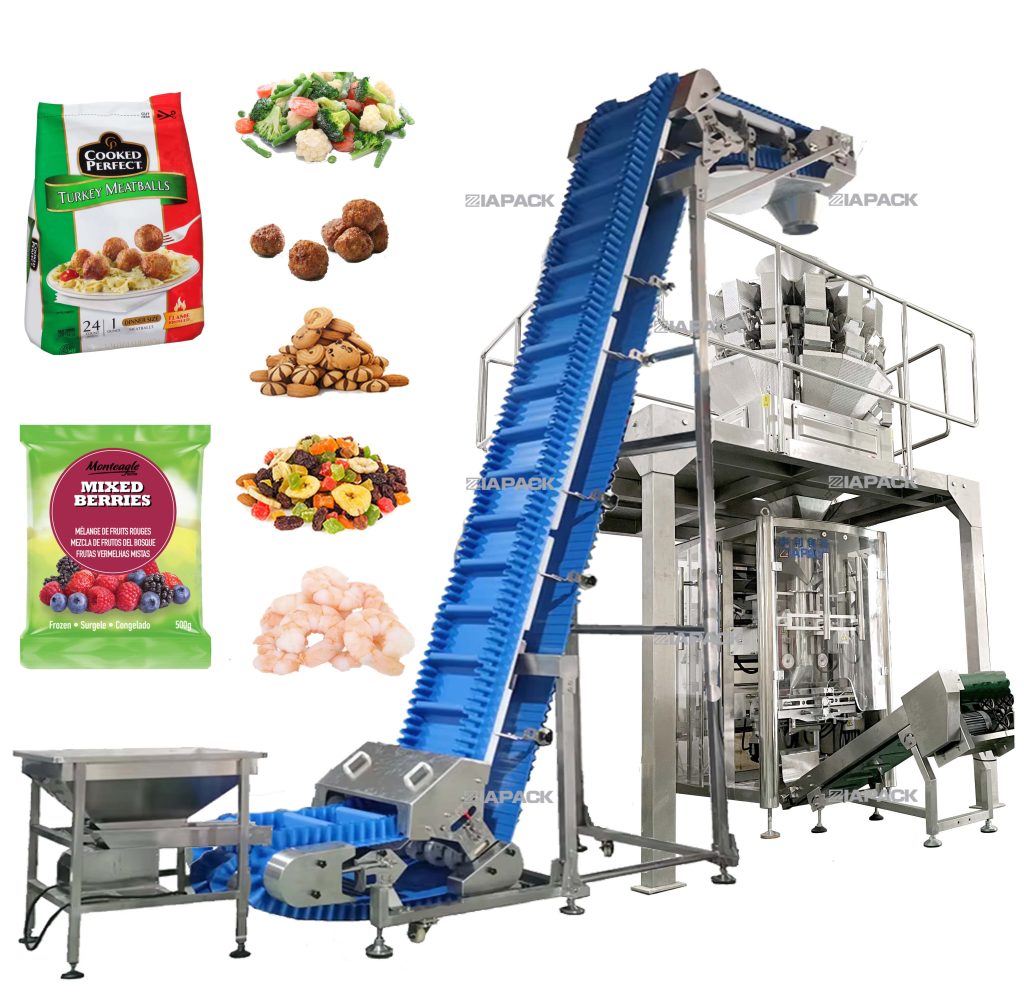

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

použitie:

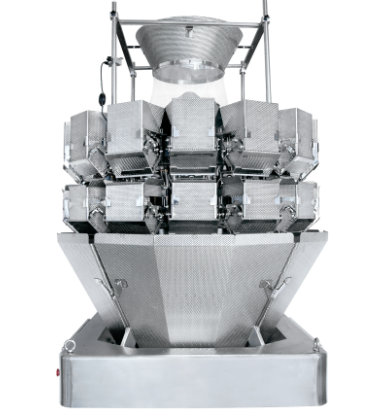

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

Vlastnosti:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Technické údaje:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

Úvod :

Tento stroj môže automaticky realizovať funkcie výroby vriec, plnenia, uzatvárania, tlače, rezania atď. Tento stroj môže automaticky dosiahnuť plnenie a uzatváranie vreciek.

Tento baliaci stroj využíva importný servomotor na podávanie filmu a rozhranie človek-stroj využíva pokročilú dotykovú obrazovku. Obsluha je jednoduchšia a pohodlnejšia. Všetky komponenty používajú medzinárodne známu značku, PLC je SIEMENS, servomotor je PANASONIC, dotyková obrazovka je SIEMENS, valec a vzduchový ventil je SMC. časti, ktoré sú v kontakte s materiálom 、ovládacia skriňa 、hlavný rám sú vyrobené z nehrdzavejúcej ocele304

Technické parametre:

Rýchlosť balenia (MAX): 20-50 vriec/min

Typ tašky: taška na vankúš .taška s klinom

Bag size: bag width 60-250mm bag length 80-350mm

Spotreba stlačeného vzduchu: 0,6 MPa 350 L/min

Elektrická potreba: 380V/5,5 kW50 Hz
