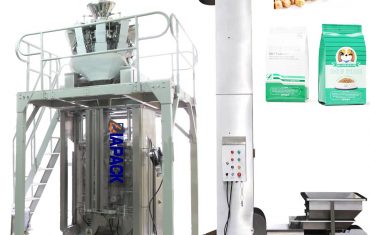

Automatic15-20 kg wooden pellets bag forming filling packaging machine
Úvod :
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
Technické parametre:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
Spotreba stlačeného vzduchu: 0,6 MPa 0,65 m³/min
Reel outer diameter: 450mm
Vnútorný priemer jadra: 75 mm
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
Hlavné vlastnosti a vlastnosti:
- Široká škála vreciek: vankúšové a klinové vrecká.
- Vysoká rýchlosť: 20-50 vriec/min
- Jednoduchá obsluha: PLC ovládač a farebná dotyková obrazovka, indikácia poruchy na dotykovej obrazovke.
- Jednoduché nastavenie: len približne 10 minút na zmenu rôznych vreciek.
- Riadenie frekvencie: Rýchlosť je možné nastaviť frekvenčnou konverziou v rozsahu.
- Vysoká automatizácia: bez posádky v procese váženia a balenia, automatický poplach stroja pri poruche.
- Bezpečnosť a hygiena:
- Žiadny film, stroj spustí alarm.
- Strojový alarm a zastavenie pri nedostatočnom tlaku vzduchu.
- Bezpečnostné ochranné kryty s bezpečnostnými spínačmi, alarmom a zastavením pri otvorení ochranných krytov.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

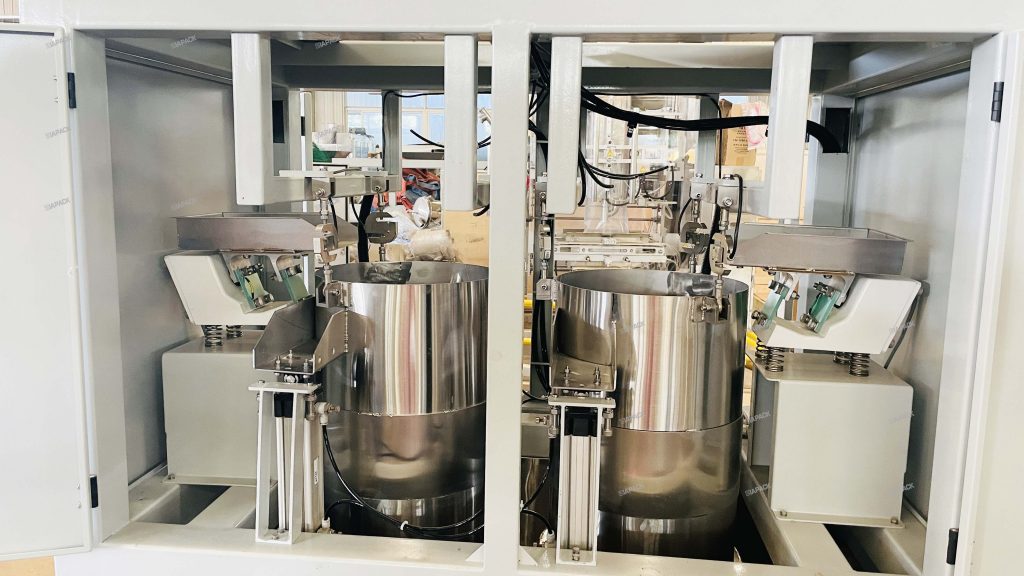

- ZLC2-15k double bucket weighing machine
Úvod :
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
Vlastnosti:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
